Input sources
Use the remote in the room to select the desired source.
| Input | Device |
|---|---|
| HDMI 1 | PC |
| HDMI 2 | Solstice Pod |
To Use the Logitech Meet Up Camera
Start a video conferencing or lecture capture software (Blackboard Collaborate Ultra, WebEx, Zoom,
Panopto, etc.) and select “Logitech MeetUp” for both the Camera and Audio Input/Output sources.
Buttons
| 1. Mute microphone | 2. Pick up call | 3. Hang up call |
| 4. Pair Bluetooth | 5. Volume Up/Down | 6. Camera Home/Center |
| 7. Camera Zoom In/Out | 8. Camera preset 1 | 9. Camera preset 2 |
Programmable camera presets
Press and hold either of the preset buttons to set the camera position for the respective preset.
Solstice Pod
You can use the Solstice Pod to wirelessly project a mobile device or laptop.
The device that you wish to share content with has to be connected to the tu-secure wireless network.
Connecting to the Solstice Pod
You can either type in the IP address or the link shown on the screen as highlighted in orange .
Laptop
After visiting the link or IP address above, you will have the option to share you screen using the web browser or through the app by downloading it.
Administrator privileges are required to install the app
MacOS permissions
On MacOS, you will have to allow the browser to have screen sharing permission enabled and have the browser restart if you haven't done so already
Limitation using Safari
If you are using Safari, or any browsers in an IOS device, you will not have the option to share your screen without downloading the app.
You will be prompted to enter a nick name and the key on the screen after you connect.
Sharing through the browser
If your browser supports it, press Share my Screen and you will be presented with a warning screen. To be able to share, you will have to go past these warnings

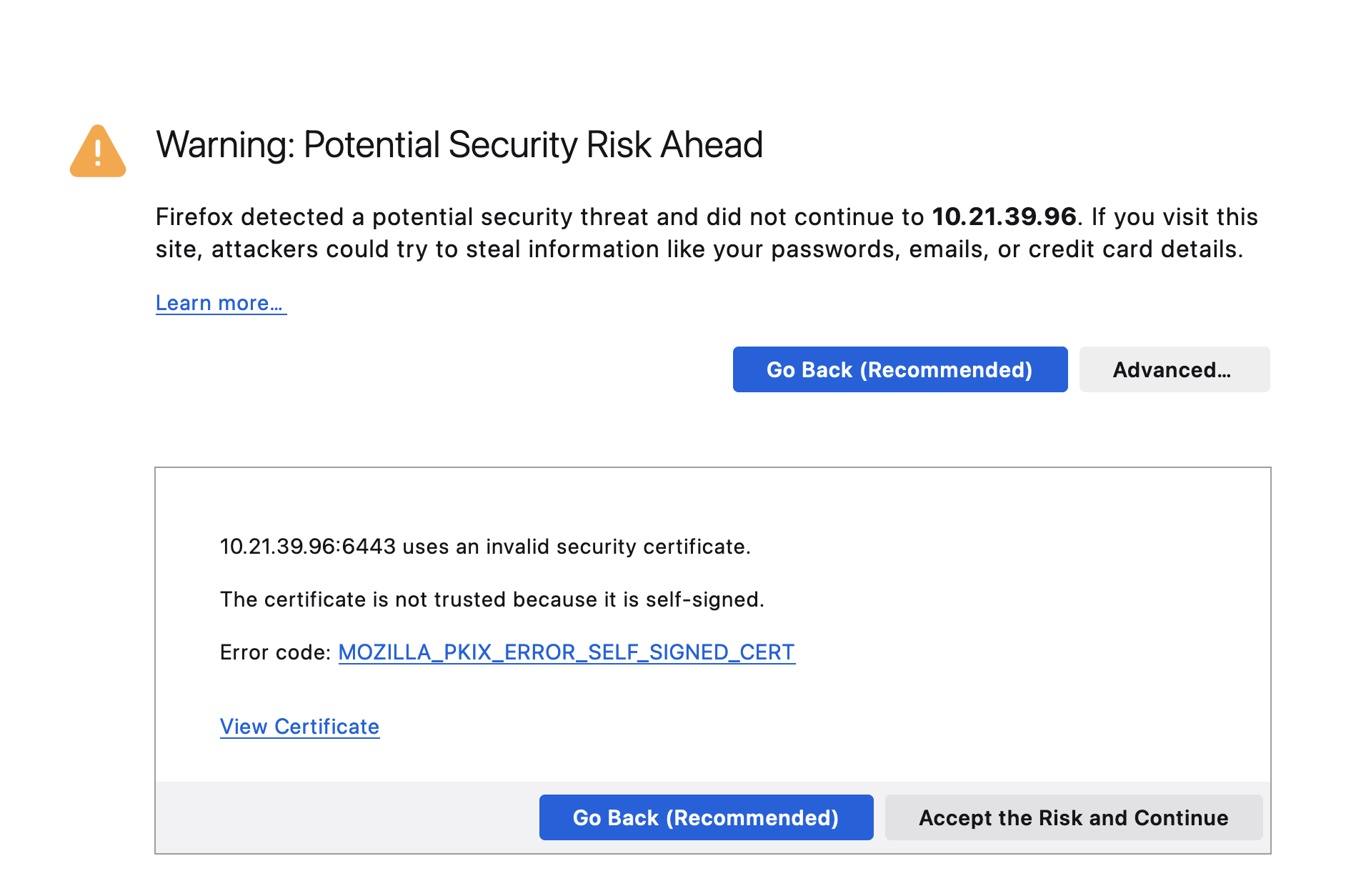

Firefox
- Click Advanced then Accept the Risk and Continue

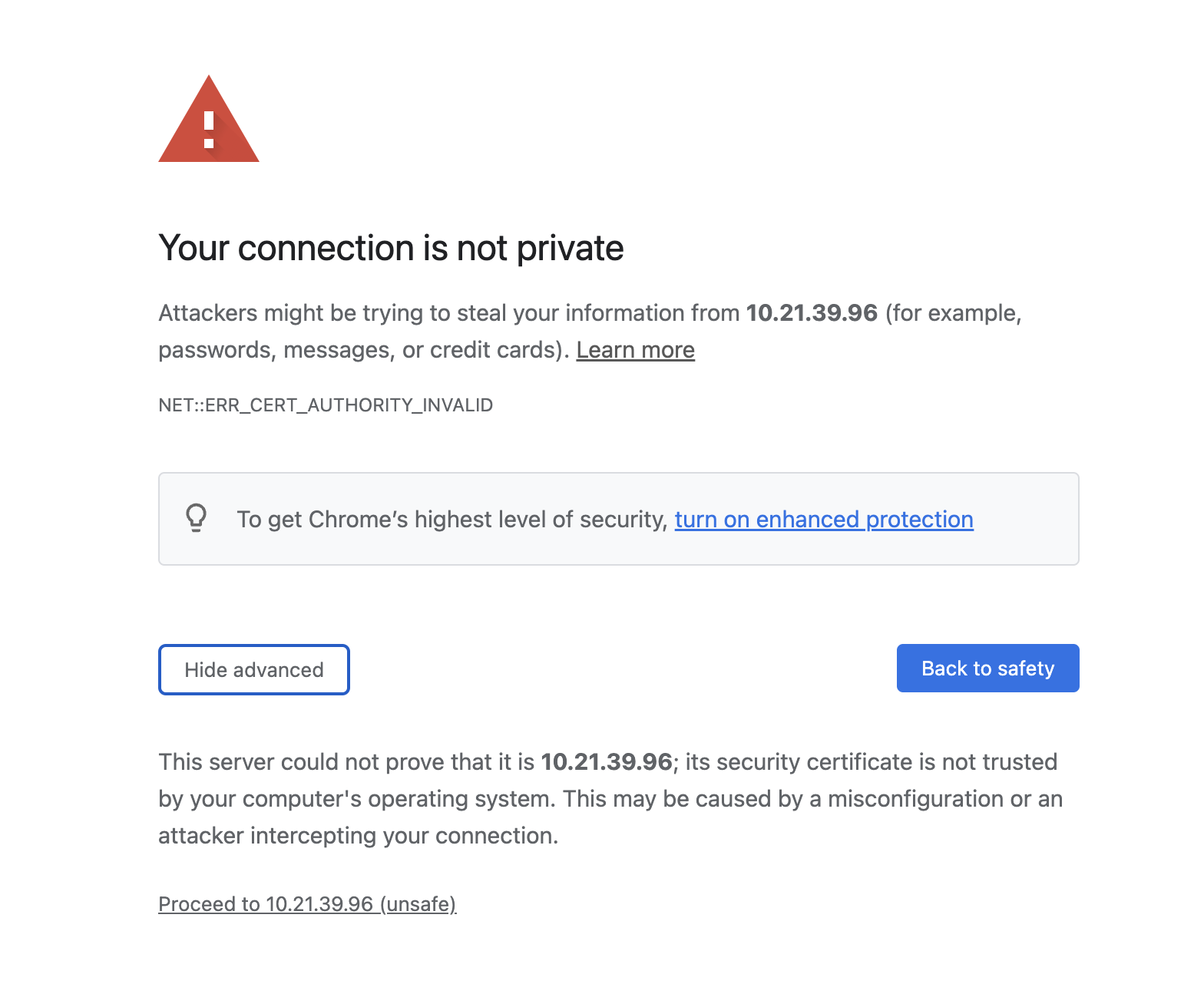

Chrome
- Click Advances then Proceed to <IP address> (unsafe)
A prompt to select which screen to share will appear
Click the window that you'd like to share and click Share to share the screen.
Closing the tab with the Solstice page will stop the screen share.
Mobile devices
If using a smartphone or a tablet, it is a requirement to download the Solstice app.
Pressing the "Get the App" button will take you to your device's respective app store.
IOS
After installation, open the app
Swipe down to get to the Access Control Center and press the Screen Mirroring button
An entry for a Solstice Pod should appear and after clicking the entry for the Solstice Pod, you will be prompted to enter the key on the screen again.
Your screen will start sharing.
To stop sharing your screen, swipe down to go to Access Control Center and press the Screen Mirroring button. Press Stop Mirroring.
Android
Work in Progress
Additional Information
See the manufacturer's documentation for more detailed information.
Technical support is available by phone or chat.
Report computer or audiovisual problems:
410-704-8324 (4-TECH)
Live Chat - https://www.towson.edu/ccltchat
For more information - https://www.towson.edu/cclt
